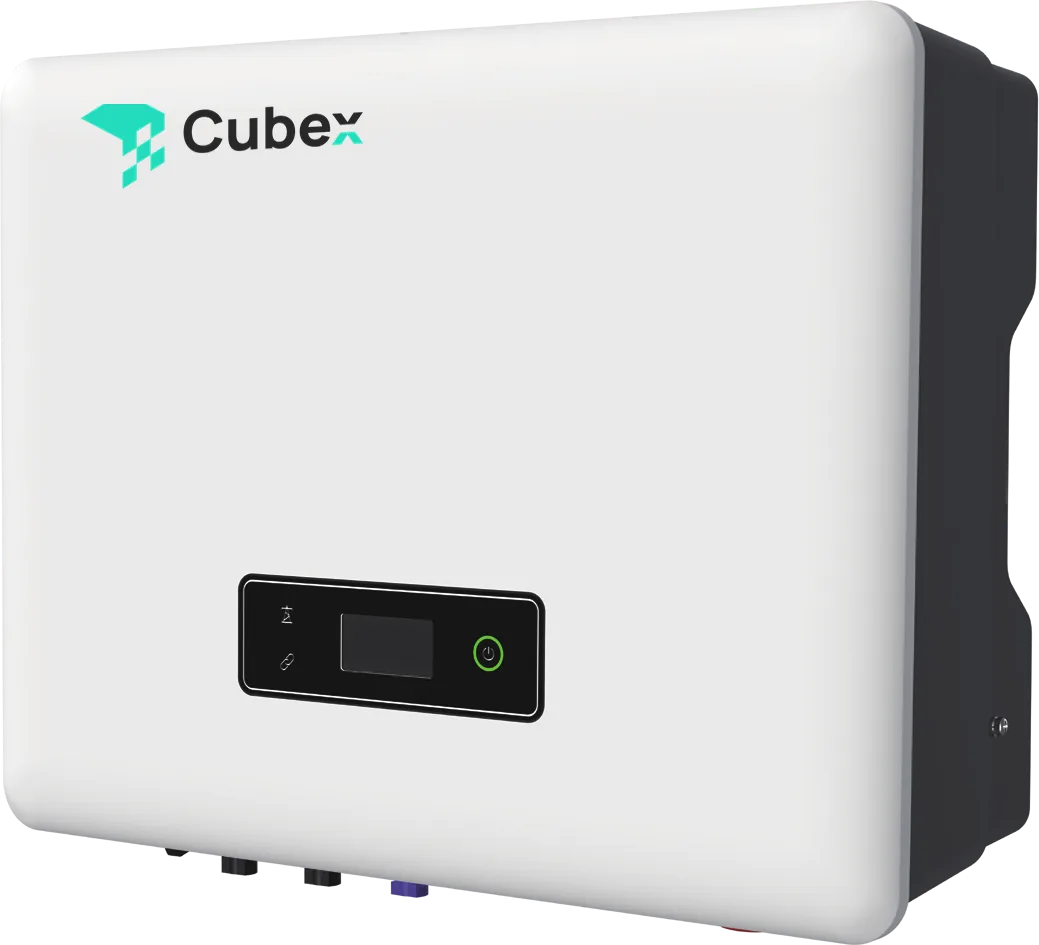

Athena Hybrid Inverter
Three-phase hybrid inverter, 8 to 12 kW
- Rated output power
- 8–12 kW
- Max. efficiency
- 98.2 %
Athena Series · Residential battery

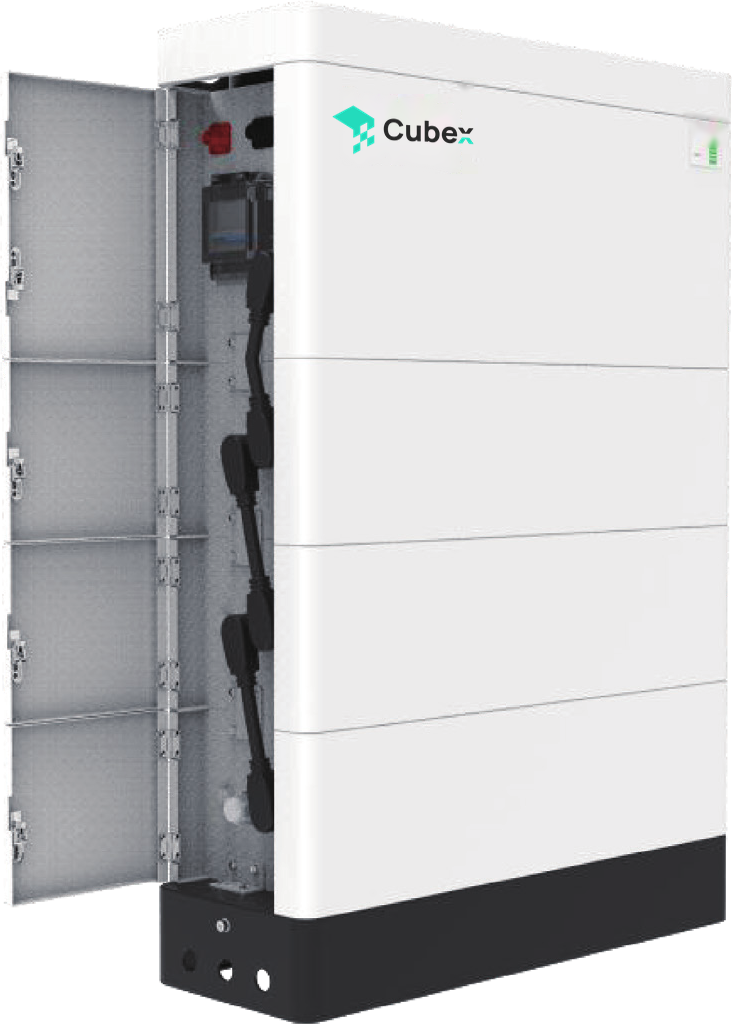

Athena HV Battery
Stackable LFP storage, 10.24 to 25.6 kWh
A high-voltage lithium iron phosphate (LFP) battery built from 2.56 kWh modules of 51.2 V and 50 Ah. Stack 4 to 8 modules, or up to 10, for 10.24 to 25.6 kWh, rated for 6000 cycles at 80 % depth of discharge. Model MQK-E3-BH2.56.
Capacity per stack
10.24–25.6 kWh
Module
2.56 kWh
Cycle life at 80 % DoD
6000
Chemistry
LFP
Outcomes
What it does for your home
Solar after sunset
Store the solar you make during the day and use it in the evening.
Back-up power
With the Athena Hybrid Inverter, the battery powers the back-up output when the grid goes down.
Sized to the home
Choose 4 to 10 modules; each one adds 2.56 kWh.
Modules per stack
From 10.24 to 25.6 kWh
Each module adds 2.56 kWh. Four to eight modules are recommended per stack, and a stack takes up to ten. Every stack voltage sits within the 135–750 V battery input of the Athena Hybrid Inverter.
Ask how many modules you need4 modules, min.
10.24 kWh
8 modules
20.48 kWh
10 modules, max.
25.6 kWh
The system
Why choose the Athena battery
LFP chemistry
Lithium iron phosphate cells for safety, cycle life and power.
Long life
Rated for 6000 cycles at 80 % depth of discharge.
Modular
Modules of 26.5 kg, easy to carry and stack on site.
Certified
IEC 62619, UL 1973, UL 9540A and UN 38.3, among others.
Technical data
Specifications
Stack configurations
| 4 modules | 10.24 kWh · 204.8 V (172.8–224.64 V) |
|---|---|
| 5 modules | 12.8 kWh · 256 V (216–280.8 V) |
| 6 modules | 15.36 kWh · 307.2 V (259.2–336.96 V) |
| 7 modules | 17.92 kWh · 358.4 V (302.4–393.12 V) |
| 8 modules | 20.48 kWh · 409.6 V (345.6–449.28 V) |
| Capacity | 50 Ah |
Stack size and weight (L × W × H)
| 4 modules | 600 × 210 × 980 mm · 129 kg |
|---|---|
| 5 modules | 600 × 210 × 1140 mm · 155.5 kg |
| 6 modules | 600 × 210 × 1300 mm · 182 kg |
| 7 modules | 600 × 210 × 1460 mm · 208.5 kg |
| 8 modules | 600 × 210 × 1620 mm · 235 kg |
General
| Battery chemistry | LiFePO4 (LFP) |
|---|---|
| Module | 51.2 V · 50 Ah · 2.56 kWh |
| Recommended charge current | 10–25 A |
| Max. continuous charge current | 50 A |
| Max. continuous discharge current | 50 A |
| Cycle life | 6000 cycles at 80 % DoD |
| Communication | RS485 / CAN |
Environment and mechanical
| Operating temperature | −20 to +55 °C |
|---|---|
| Installation | Indoor |
| Relative humidity | 5–95 % |
| High-voltage box (L × W × H) | 600 × 210 × 250 mm |
| Battery module (L × W × H) | 600 × 210 × 160 mm |
| Battery module weight | 26.5 kg |
Standards and certifications
- CB
- IEC 62619
- CE-EMC
- CE-GPSD
- UKCA
- UL 1973
- UL 9540A
- EN 62040
- IEC 62040
- UN 38.3
- MSDS
Available configurations vary by sub-model. Specifications subject to change; the datasheet is the binding reference.
